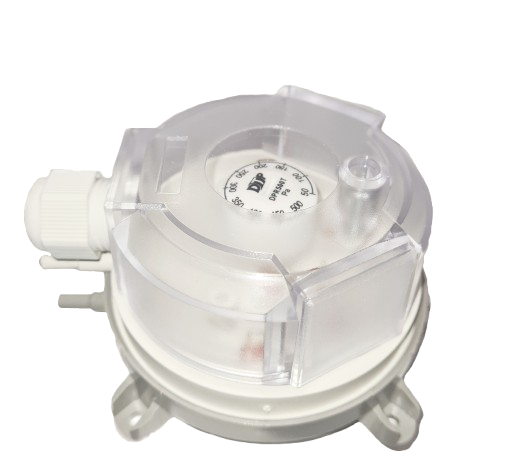

DPR 200K differential pressure switch is designed for installation in a kitchen hood duct and activates the heat recovery unit’s boost function when the hood is switched on.
The pressure switch comes with a set of mounting accessories, including: 2 plastic hose connectors with mounting flange, 2 meters of PVC hose, and 4 mounting screws.
Technical data:
- Measured gases: air, non-flammable and non-aggressive gases
- Electrical contact: SPDT
- Pressure difference: 10 Pa
- Measuring range: 20–200 Pa
- Maximum operating pressure: 5 kPa
- Current: 1.5 A (0.4 A) / 250 V
- Operating temperature: -40 °C to +85 °C
